CARAIBI

The perfect choice for enjoying a moment of relaxation, sheltered from the strongest sun rays.

Caraibi is an awning with simple, clean lines—elegant in its look, easy to use, and available in a wide range of fabric colors. The cassette system protects the fabric from the elements when the awning is not in use.

Certification (EN 13561)
Wind resistance: Class 2
Class 1 – Overhang 350

Awning with box and full closure with extendable aluminium arms and triplex chain in stainless steel. Possibility for micrometric regulation of the inclination of each arm at the time of installation. Arm movement on self-lubricated bushings.

Available colours

STANDARD

BIANCO 9010

AVORIO 1013

GRIGIO LUCE 7035

BIANCO SOFT 9010

AVORIO SOFT 1013

GRIGIO SOFT 7035

ANTRACITE SOFT 7016

TECHNICAL FEATURES

All screws and bolts are in stainless steel or in steel with GEOMET® 321 treatment.
Waterproof acrylic fabrics welded as part of standard production.
Note that the awnings, even if produced with waterproof acrylic fabrics or pvc, have been designed and structured only as solar protection. The size in width always considers the outer side plates. Different heights of the valance can be requested, provided they are multiples of 5 cm.
Awnings are normally designed for a maximum inclination of 25-30°. For lower slopes, and therefore with the awnings installed almost horizontally, the cloth tension may be scarce in the central section due to the weight of the fabric itself.

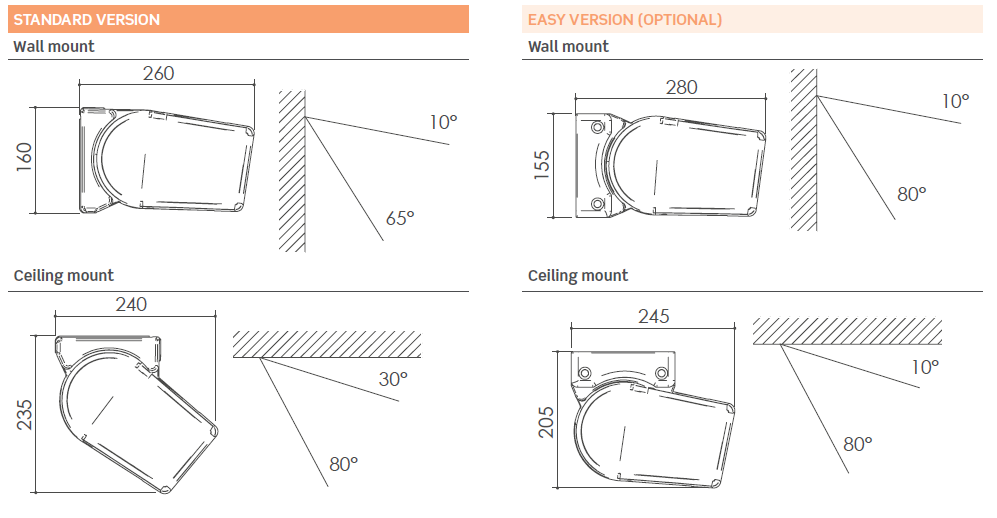

Side view and inclinations

Available sizes

Projection	L.min	Width
Projection	L.min	245	300	350	400	475	500	600
150	186	◼︎	◼︎	◼︎	◼︎	◼︎	◼︎	◼︎
175	208	◼︎	◼︎	◼︎	◼︎	◼︎	◼︎	◼︎
200	236	◼︎	◼︎	◼︎	◼︎	◼︎	◼︎	◼︎
225	262	-	◼︎	◼︎	◼︎	◼︎	◼︎	◼︎
250	282	-	◼︎	◼︎	◼︎	◼︎	◼︎	◼︎
300	336	-	-	-	◼︎	◼︎	-	-
350	380	-	-	-	◼︎	◼︎	-	-

◼︎: Available size

-: Size not available
