CARAIBI SMART

Wind resistance
⠀⠀⠀from width 245 to 475* – Class 2
⠀⠀⠀width 500 – Class 1
⠀⠀⠀*NB: With 475 length, ledges of 225 and 250 have a class 1 of wind resistance.
CE UNI EN 13561

Awning with box and full closure with extendable aluminium arms and triplex chain in stainless steel. Possibility for micrometric regulation of the inclination of each arm at the time of installation. Arm movement on self-lubricated bushings.

Awnings are normally designed for a maximum inclination of 25-30°. For lower slopes, and therefore with the awnings installed almost horizontally, the cloth tension may be scarce in the central section due to the weight of the fabric itself.

Paintwork

STANDARD

BIANCO
9010

BEIGE
1013

GRIGIO
7035

BIANCO
SOFT 9010

BEIGE
SOFT 1013

GRIGIO
SOFT 7035

7016
SOFT

Other colour request a quote.

Maximum projection: 2,5 m

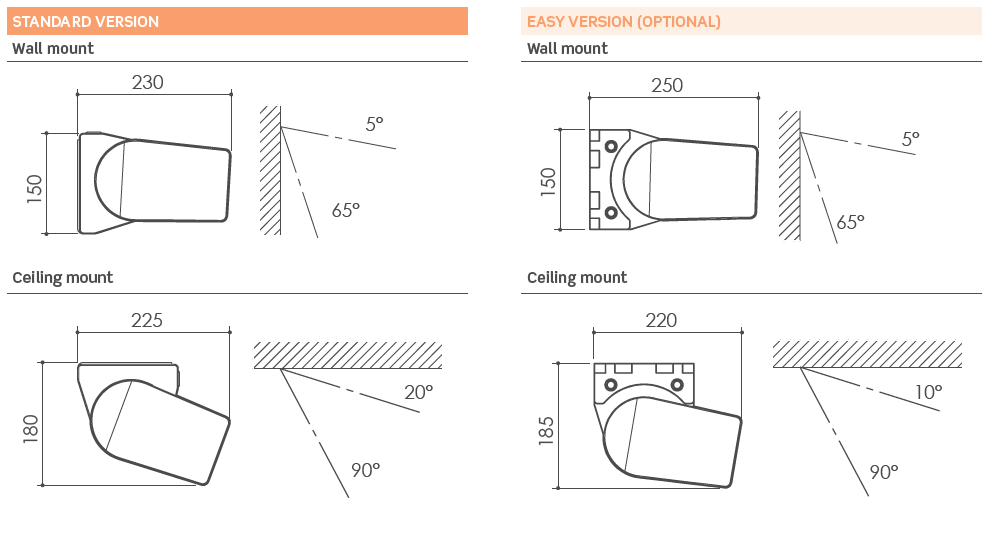

Inclination:
⠀⠀⠀Wall mount – min 0° / max 70°
⠀⠀⠀By using a “L” bracket, you can obtain a 90° max of inclination.
⠀⠀⠀Wall mount – min 13° / max 90°

Technical information

All fasteners are in stainless steel or steel with GEOMET® 321 treatment. Unless otherwise specified in the order, the screen will have the following characteristics:

  • classic model
  • right-hand control (external front view);
  • Reinforcement in ral 9010;
  • SunStop stitching (TENARA or WELDED on request at no extra cost);
  • valance design 02 (h 25 cm);
  • wall-mounted.

Waterproof acrylic fabrics welded as part of standard production. Notes that the awnings, even if produced with waterproof acrylic fabrics or pvc, have been designed and structured only as solar protection. The size in width always considers the outer side plates.
Different heights for the ruffle (VALANCES) can be requested, so long as they are multiple of 5 cm.
If a valance is requested in a different colour to the fabric, the cost of an additional valance will be charged.

Projection 150 175 200 225 250
Minimum achievable width 183 205 223 255 279

Standard

Optionals

Winch operation rate 1

Projection Width
245 300 350 400 475 500
150
175
200
225 - -
250 - -
⦿ a a a a b b

⦿ : Roller tube

a up to width 400  Ø 70
b from width 401 a 500 Ø 78
